HDPE V-Lock Concrete Protective Liner – Durable, Chemical-Resistant Barrier for Long-Term Structural Integrity

Engineered for superior performance in demanding environments, the HDPE V-Lock Concrete Protective Liner offers a robust solution to safeguard concrete infrastructure from corrosion, abrasion, and chemical degradation. This advanced thermoplastic system combines high-density polyethylene (HDPE) with an innovative anchoring mechanism to deliver unmatched durability, waterproofing, and ease of installation—ideal for both new construction and rehabilitation projects worldwide.

Key Features

• High-Density Polyethylene Material: Offers exceptional resistance to aggressive substances including acids, alkalis, and chlorinated water commonly found in wastewater systems.

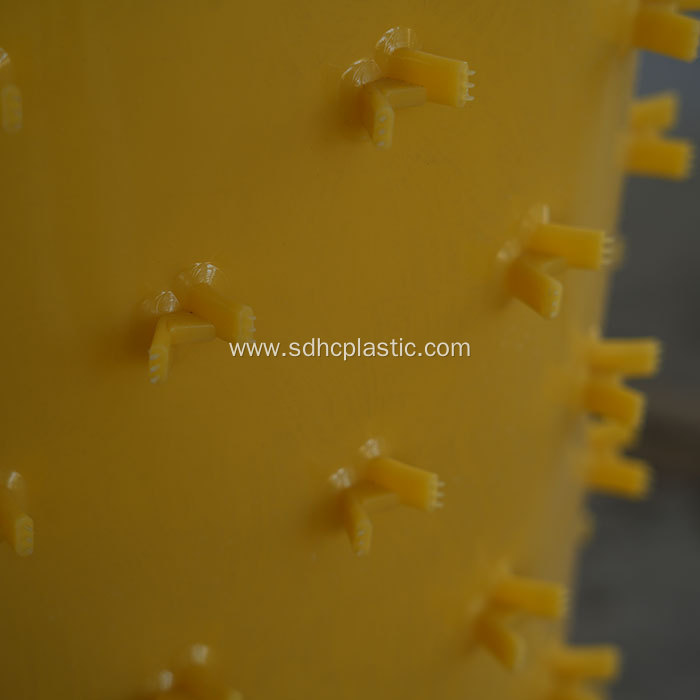

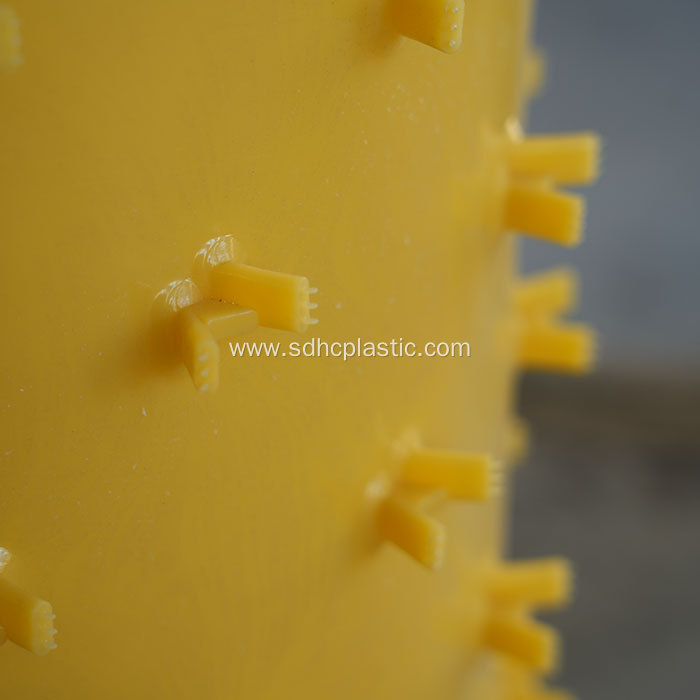

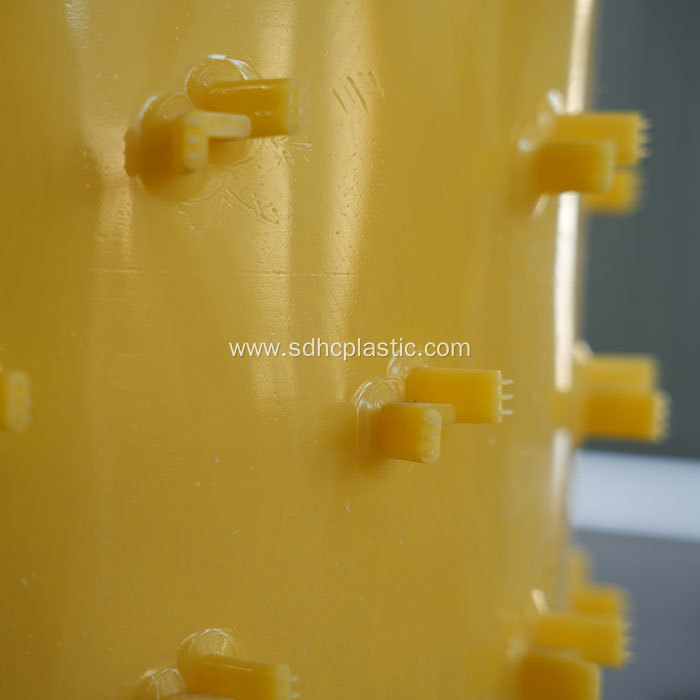

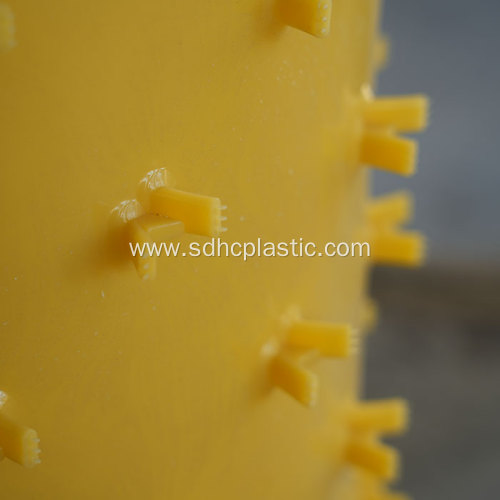

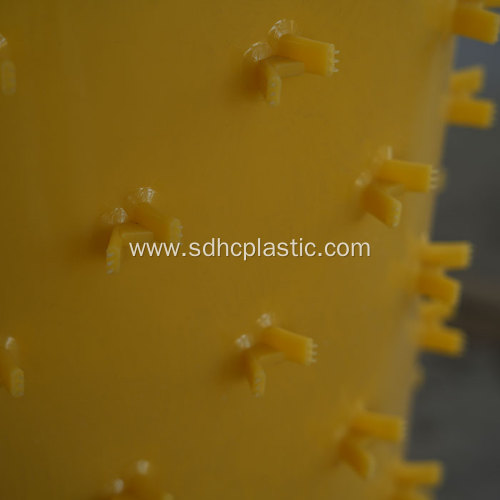

• V-Lock Anchoring System: Embedded studs create a mechanical bond between liner and substrate, ensuring secure attachment under dynamic loads and thermal stress.
• Crack Bridging Capability: Flexibility allows the liner to span minor cracks in concrete substrates without compromising integrity.
• UV-Stable Formulation: Suitable for outdoor applications where prolonged sunlight exposure is expected, maintaining structural properties over time.
• Wide Temperature Range Compatibility: Functions reliably from -40°C to +60°C, making it ideal for diverse climatic conditions across global markets.
• Low Maintenance & Easy Cleaning: Smooth surface resists biofilm buildup and simplifies routine inspection or cleaning processes.

Detailed Description

The HDPE V-Lock Concrete Protection Liner is a modern alternative to traditional coatings and epoxy-based solutions. Unlike paint or cementitious overlays that may peel, crack, or degrade over time, this seamless barrier provides long-term protection by forming a chemically inert layer between the concrete and its environment. The liner’s 1–2mm thickness ensures flexibility while offering excellent tensile strength (minimum 25 MPa), shear resistance (≥2500 N per anchor), and impact resilience—critical for structures subjected to heavy foot traffic, vehicle loadings, or industrial effluent.

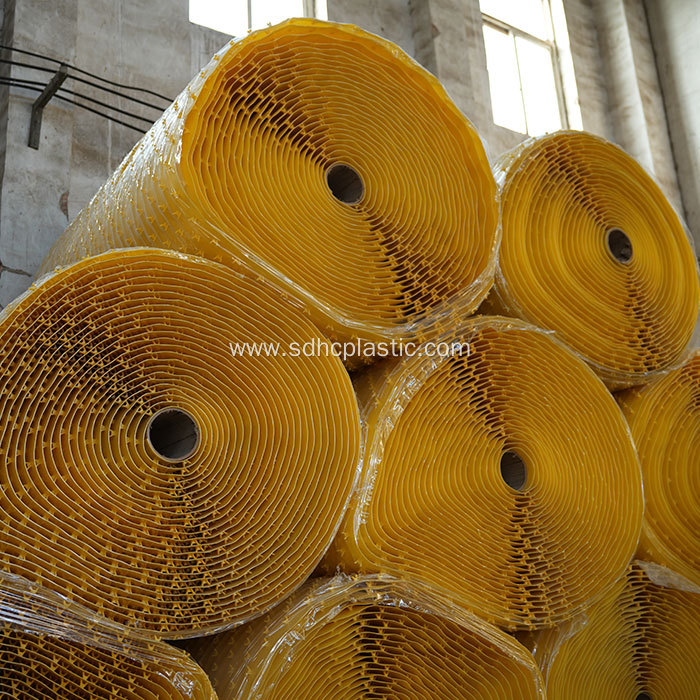

Designed for rapid deployment, the product can be installed on existing or newly poured concrete surfaces with minimal preparation. Its 2-meter width and unlimited roll length allow efficient coverage of large areas such as tunnel linings, sump pits, and containment basins. The mechanical interlock system guarantees a reliable connection even in complex geometries like curved channels or irregularly shaped tanks, eliminating common issues associated with adhesive failures or delamination.

Application Scenarios

This protective liner excels in critical infrastructure sectors including but not limited to:

• Wastewater treatment plants and sewer tunnels
• Industrial storage tanks and chemical handling facilities
• Underground pipelines requiring trenchless relining
• Bridge abutments, foundation walls, and retaining structures exposed to moisture
• Reservoirs, stormwater basins, and potable water containment units

Whether used during initial construction or retrofitted into aging assets, the HDPE V-Lock system extends service life significantly while reducing lifecycle costs through reduced maintenance frequency and fewer repair interventions.

User Feedback Highlights

Global users report consistent satisfaction due to the liner’s simplicity in application, longevity in harsh conditions, and cost-effectiveness compared to conventional methods. Many professionals appreciate how it minimizes downtime during installation—especially in operational facilities where shutdowns are costly. Others highlight its ability to maintain structural aesthetics and prevent reinforcement steel oxidation, which often leads to premature failure in unprotected concrete.

Frequently Asked Questions

Is this liner suitable for potable water applications? Yes, when manufactured using food-grade HDPE, it complies with international standards for safe contact with drinking water.

Can it be repaired if damaged? Absolutely. Damaged sections can be cut out and replaced without affecting adjacent areas—a major advantage over monolithic coatings.

What makes it better than epoxy lining? Unlike epoxies that require precise surface prep and cure times, HDPE liners offer faster installation, no VOC emissions, and superior resistance to temperature fluctuations and mechanical wear.

With a proven track record in civil engineering and environmental protection projects across Europe, North America, Australia, and the Middle East, the HDPE V-Lock Concrete Protective Liner stands as a trusted choice for engineers seeking durable, low-maintenance solutions for concrete asset preservation.

Product Categories : Concrete Protection Liner
